Triple-Effect Evaporation Crystallization Unit
Evaporation Capacity: Calculate based on the actual feed solution supply capacity and properties.
Heat Source: Hot Water / Steam
Vacuum System: Water-Ring Vacuum Pump + Chiller + Circulation Water Tank （Standalone Operation）
Evaporation Crystallizer: Utilizes submerged heating with the heat source flowing through the tubes and the feed solution circulating outside the tubes.
Materials of Construction for Wetted Parts: SUS 316L / SUS 2205 / Titanium
Structural Material of the Frame：Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
Types of Control Systems：Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
Notes: Customizable Skid-mounted Modular Unit.
- Product Description
Triple-Effect Evaporation Crystallization Unit: Efficient Solution for Industrial Processing
At Xi'an Lexin Technology Co., Ltd., we're proud to offer our cutting-edge Triple-Effect Evaporation Crystallization Unit. This advanced system is designed to meet the demanding needs of various industries, including chemical processing, pharmaceuticals, and hydrometallurgy. Our unit combines innovative technology with robust construction, ensuring optimal performance and reliability.
Xi'an Lexin Technology Co., Ltd. stands out as a leading product supplier. Our advantages include:
- Extensive experience in hydrometallurgy and industrial applications
- Customized solutions tailored to specific client needs
- High-quality materials and construction for long-lasting performance
- Excellent after-sales support and technical expertise
- Proven track record with international clients
Product Introduction
The Triple-Effect Evaporation Crystallization Unit is a high-efficiency, energy-saving thermal processing system designed for pilot-scale and industrial-scale concentration, crystallization, and resource recovery. Utilizing a three-effect evaporation process, it maximizes steam reuse across multiple stages—significantly reducing energy consumption while maintaining process stability and product purity.

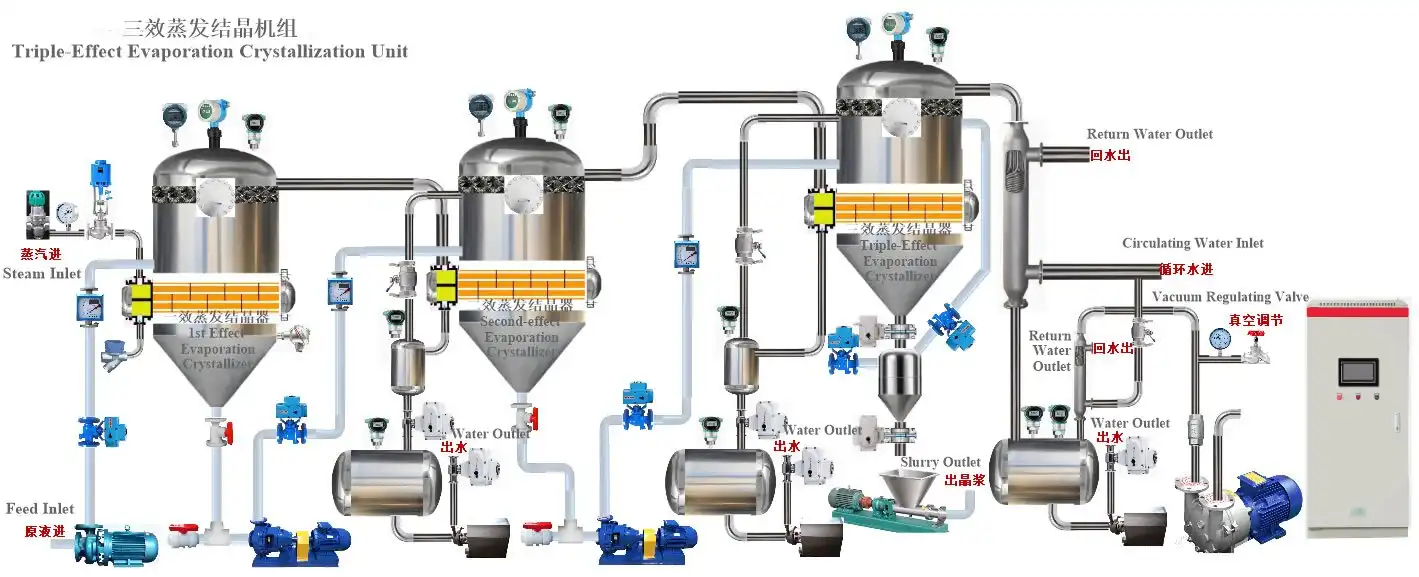

The system comprises key components such as preheaters, triple-effect evaporators, a vacuum system, crystallizer, and automated control systems. All wetted parts can be customized with corrosion-resistant materials like SUS 316L, Duplex Stainless Steel 2205, or Titanium, depending on the feed solution’s chemical characteristics.
Specifications
|
Feature
|
Details
|
|---|---|
|
Evaporation Capacity
|
Customized based on feed solution supply capacity and properties
|
|
Heat Source
|
Hot Water / Steam
|
|
Vacuum System
|
Water-Ring Vacuum Pump + Chiller + Circulation Water Tank
|
|
Evaporation Crystallizer
|
Utilizes submerged heating with the heat source flowing through the tubes and the feed solution circulating outside the tubes
|
|
Materials of Construction for Wetted Parts
|
SUS 316L / SUS 2205 / Titanium
|
|
Structural Material of the Frame
|
Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
|
|
Types of Control Systems
|
Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
|
|
Design
|
Customizable Skid-mounted Modular Unit
|
Why Choose Our Triple-Effect Evaporation Crystallization Unit?
- Energy-efficient design reduces operational costs
- Patented tube-sheet configuration minimizes fouling
- Customizable to meet specific process requirements
- Robust construction ensures long-term reliability
- Advanced control systems for precise operation
- Modular design for easy installation and maintenance

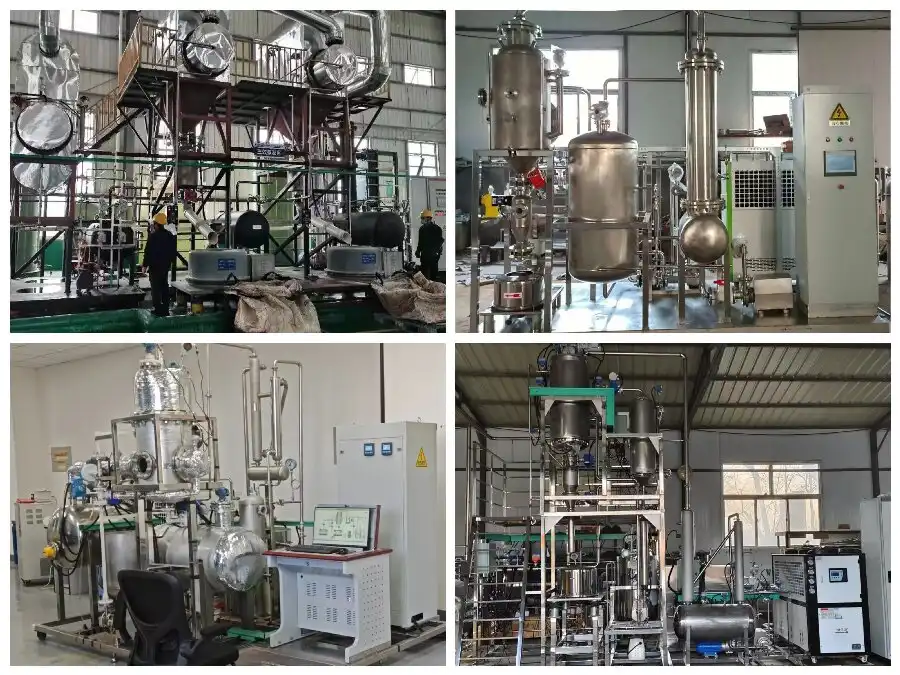

Product Display
Application Areas
Our Triple-Effect Evaporation Crystallization Unit excels in hydrometallurgy applications, including:
- Concentration of metal-bearing solutions
- Recovery of valuable minerals from leach liquors
- Purification of process streams
- Crystallization of high-purity metal salts
- Treatment of industrial wastewater for zero liquid discharge
The unit's versatility makes it ideal for various metal extraction and refining processes, helping clients optimize their operations and recover valuable resources efficiently.
After-sales Service
We're committed to your success long after installation. Our comprehensive after-sales support includes:
- Warranty coverage for peace of mind
- Regular maintenance checks and optimization advice
- 24/7 technical support
- Spare parts inventory management
- Performance optimization consultations
FAQ
Q: What is the typical ROI for a product?
A: ROI varies depending on your specific application, but most clients see a return within 2-3 years due to energy savings and increased productivity.
Q: Can the unit handle corrosive solutions?
A: Yes, we offer corrosion-resistant materials like titanium for challenging environments.
Q: How does the triple-effect design improve efficiency?
A: It reuses steam across three stages, significantly reducing energy consumption compared to single-effect systems.
Q: What level of automation does the unit offer?
A: Our units can be equipped with PLC or DCS control systems for fully automated operation.
Q: Is the unit compliant with environmental regulations?
A: Yes, our design meets or exceeds global environmental standards for emissions and waste treatment.
Contact Us
Ready to enhance your industrial processes with our Triple-Effect Evaporation Crystallization Unit? Contact our expert team at xalexin-tech@outlook.com for a personalized consultation and quote. Let's work together to optimize your operations and drive your business forward.
