Box-Type Mixer-settler

Product Features: Provides better chemical, thermal, and wear resistance.
Reactor Capacity: 50L; 80L; 100L
Kettle Material: Polypropylene （PP）
Stirring Power: 550W（50L /80L /100L）
Stirring Speed: 0-280rpm（50L /80L /100L）
Heating device（Select one of the four options）: Polytetrafluoroethylene （PTFE） Electric Heating / Borosilicate Glass Electric Heating / Titanium Electric Heating / Titanium Coil + High-Temperature Circulating Oil Bath
Bottom discharge valve（Select one of the two options）: Polypropylene （PP）material flange ball valve / Top-Entry Metallic Discharge Valve
Notes: Customized configurations are available to meet specific requirements.

Product Features: ①Wide aPPlication range - Suitable for separation and purification of various non-ferrous metal elements. ②Excellent scalability, stability and reproducibility - The extraction process demonstrates superior performance in these equipment. ③Broad operating range for phase ratio （O/A ratio）. ④Ensures zero liquid leakage during operation.
Model: LX-MS-100mL；LX-MS-125mL；LX-MS-300mL；LX-MS-500mL；LX-MS-1L；LX-MS-2L；LX-MS-3L；LX-MS-4L；LX-MS-5L；
Effective Volume of mixer: 100mL；125mL；300mL；500mL；1L；2L；3L；4L；5L；
ratio of effective volume between mixer and settler : 1：3; 1：4; others

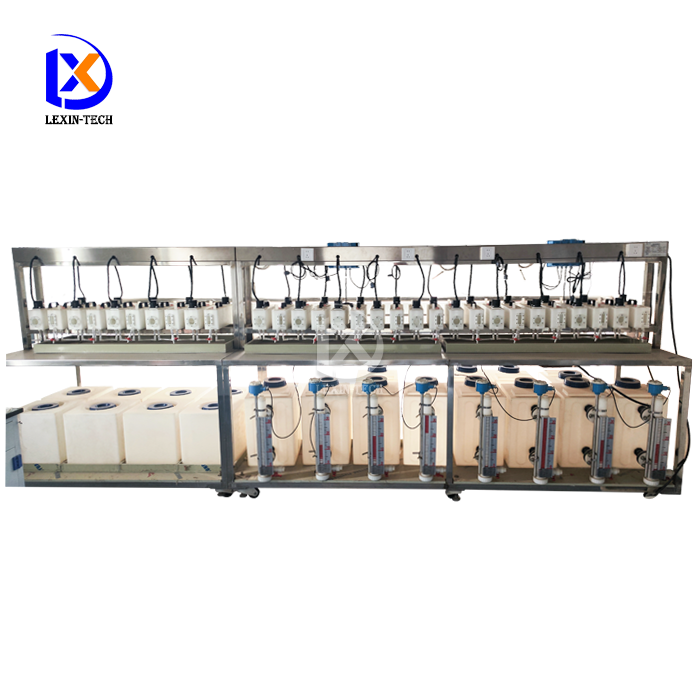

Vessel material of mixer-settler: Transparent PMMA/ Transparent PVC/ PP/ PPH/ PTFE/ Metals（such as various types of stainless steel）

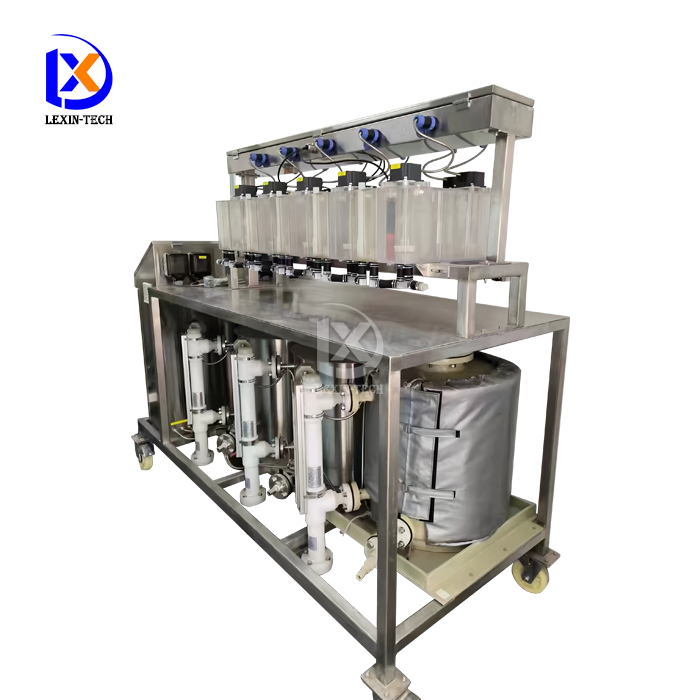

Fabrication methodology for mixer-settler vessel：Adhesive bonding/ Hot gas Welding and Metal Welding/ Integral molding
Material of operating Platform：Carbon steel with anti-corrosion coating/ SUS 304/ Aluminum alloy
Types of operating Platform: Mobile multi-level work platform / Desktop stand
Types of Control Systems：One-to-one control via buttons or knobs / Integrated Touchscreen Control
Notes: Customized configurations are available to meet specific requirements.

Product Features: ①Compact equipment design. ②Minimal packing material requirement. ③Short equilibrium time. ④Continuous operation with high automation level. ⑤Easy replacement of heavy-phase weir plates.
Model: LX-CE-20
Bowl Diameter （mm）：20
Mixing Flux （L/h）：1-10
Stirring Speed（r/m）:5000-8000
Motor Power （W）：90
Inlet/Outlet Dimensions：Ø10
Bowl Material: Polytetrafluoroethylene（PTFE）/ Polyvinylidene fluoride （PVDF）/ Polyetheretherketone （PEEK）/ pure titanium （Ti）
Shell Material: Polytetrafluoroethylene（PTFE）/ Polyvinylidene fluoride （PVDF）/ Polyetheretherketone （PEEK）/ Polycarbonate (PC)/ Polymethyl methacrylate (PMMA)
Material of operating Platform：Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
