Pilot-Scale PP Reactor
Reactor Capacity: 50L; 80L; 100L
Kettle Material: Polypropylene （PP）
Stirring Power: 550W（50L /80L /100L）
Stirring Speed: 0-280rpm（50L /80L /100L）
Heating device（Select one of the four options）: Polytetrafluoroethylene （PTFE） Electric Heating / Borosilicate Glass Electric Heating / Titanium Electric Heating / Titanium Coil + High-Temperature Circulating Oil Bath
Bottom discharge valve（Select one of the two options）: Polypropylene （PP）material flange ball valve / Top-Entry Metallic Discharge Valve
Notes: Customized configurations are available to meet specific requirements.
- Product Description
Xi'an Lexin Technology: Your Trusted Pilot-Scale PP Reactor Supplier
At Xi'an Lexin Technology Co., Ltd., we take pride in our expertise as a leading Pilot-Scale PP Reactor supplier. Our advanced product offers unparalleled performance for your research and development needs. With over a decade of experience in hydrometallurgy, we've honed our skills to deliver top-quality equipment that meets the demanding requirements of chemical industry and hydrometallurgical processing.
Product Description
Our customized Pilot-Scale PP Reactor systems for hydrometallurgical applications feature exceptional chemical resistance with four configurable heating modalities: (i) fluoropolymer-based electric heating, (ii) borosilicate glass-based electric heating, (iii) titanium-based electric heating, and (iv) titanium coil with thermal oil circulation. The systems demonstrate proven efficacy in both leaching operations (including but not limited to secondary resource recovery) and impurity precipitation processes (e.g., ferric/aluminum removal through pH-controlled hydrolysis).
Specifications
|
Feature
|
Details
|
|---|---|
|
Reactor Capacity
|
50L /80L/100L
|
|
Kettle Material
|
Polypropylene （PP）
|
|
Temperature Range
|
RT to 100°C
|
|
Pressure Rating
|
Atmospheric pressure
|
|
Stirring Speed
|
0-280rpm
|
|
Stirring Power
|
550W
|
|
Heating device（Select one of the four options）
|
PTFE Electric Heating / Borosilicate Glass Electric Heating / Titanium Electric Heating / Titanium Coil + High-Temperature Circulating Oil Bath
|
|
Control System
|
General-purpose Control Panel
|
|
Bottom discharge valve
（Select one of the two options）
|
Polypropylene （PP）material flange ball valve / Top-Entry Metallic Discharge Valve
|
Note: Customized configurations available to meet specific requirements.
Why Choose Our Pilot-Scale PP Reactor?
- Exceptional chemical, thermal, and wear resistance
- Scalable design for future industrial applications
- Customizable to suit various reaction conditions
- Backed by our expert technical support and maintenance services
- Customized configurations are available to meet specific requirements

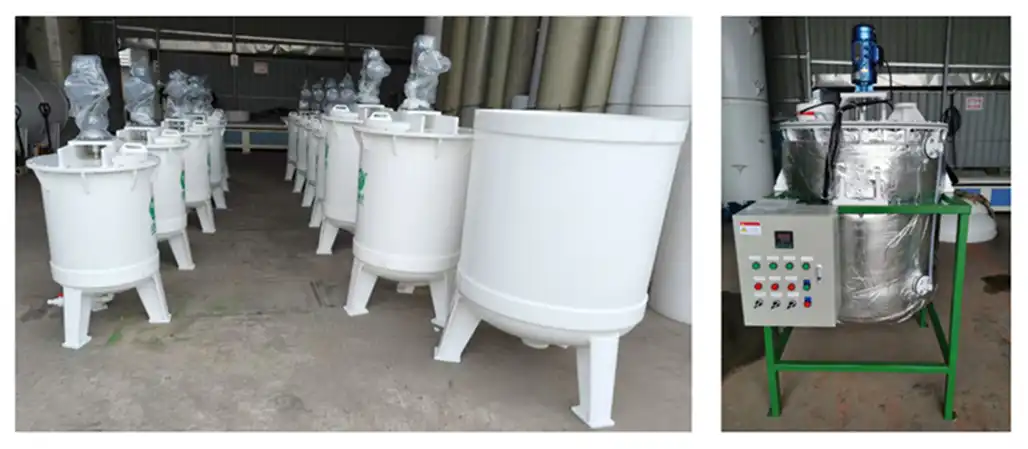

Product Display
Application Areas
Our Pilot-Scale PP Reactor excels in various hydrometallurgical processes, including:
- Leaching operations (including but not limited to secondary resource recovery)
- Impurity precipitation processes (e.g., ferric/aluminum removal through pH-controlled hydrolysis)
These versatile reactors are crucial for developing efficient and cost-effective production methods across multiple industries.
After-sales Service
We're committed to your success long after the purchase. Our comprehensive after-sales support includes:
- Professional installation and commissioning guidance
- Provide comprehensive operation training materials
- Prompt technical assistance
- Spare parts availability
FAQ
Q: What makes your product unique?
A: Our Pilot-Scale PP Reactor combines durability, precision control, and scalability, making it ideal for bridging lab-scale research and industrial production.
Q: Can the Pilot-Scale PP Reactor be customized for specific processes?
A: Absolutely! We offer tailored solutions to match your exact reaction requirements.
Q: Is the Pilot-Scale PP Reactor easily movable?"
A: Yes. The PP Reactor is equipped with universal casters at the base, making it easy to move from one location to another.
Q: What kind of support can I expect for installation and training?
A: We provide comprehensive on-line installation, commissioning, and operator training to ensure smooth integration into your processes.
Q: How quickly can you deliver a product?
A: Lead times vary based on specifications, but we strive to meet your project timelines efficiently.
