Turbine Extraction Column
Model: LX-TEC-20；LX-TEC-30；LX-TEC-40；LX-TEC-50；LX-TEC-60；LX-TEC-80；LX-TEC-100；LX-TEC-150；LX-TEC-200； LX-TEC-300
Column outer diameter（mm）: 20；30；40； 50；60；80；100；150；200；300
Number of Extraction Stages: Calculate based on material properties.
Column Material: High Borosilicate Glass/PTFE/PP/SUS 316L/SUS 304
Structural Material of the Frame：Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
Types of Control Systems：Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
Notes: Optional insulation kit available.
- Product Description
Turbine Extraction Column: Innovative Separation Technology for Modern Industries
Welcome to Xi'an Lexin Technology Co., Ltd., your trusted partner for cutting-edge Turbine Extraction Column solutions. Our advanced columns are designed to revolutionize your separation processes, offering unparalleled efficiency and reliability. As a leading supplier, we pride ourselves on delivering top-quality products that meet the diverse needs of chemical processing, pharmaceuticals, and environmental engineering sectors.
Xi'an Lexin Technology's Turbine Extraction Column Advantages
- Decades of expertise in hydrometallurgy and separation technologies
- Customizable solutions to fit your specific process requirements
- Proven track record with international clients across Europe, America, and Asia
- Commitment to superior quality and professional after-sales support
Product Description

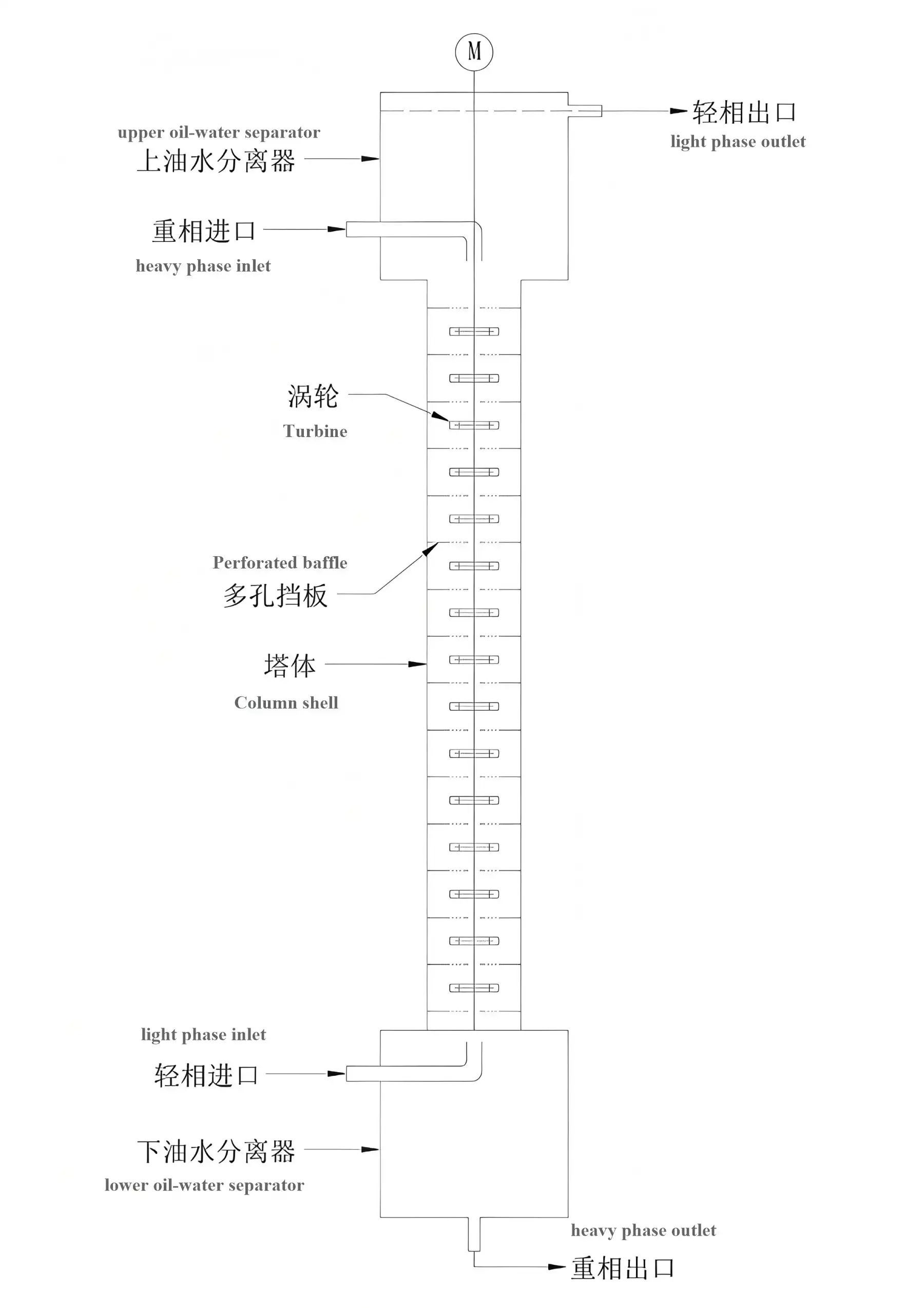

The turbine extraction column is a specialized variant of the rotating disc contactor (RDC), consisting of five main components: the oil-water separator (upper and lower sections), the column body, the turbine agitation system, the feed/discharge system, and the electrical control system. The inner diameter and height of the column are custom-designed based on the client's process requirements and material characteristics.
The inner wall of the column is equipped with multiple stationary rings spaced at specific intervals, while turbine impellers are mounted on the central shaft. The mixing unit comprises these stationary rings and turbine impellers, where the stationary rings partition the column into distinct mixing zones. Within each zone, the turbine impellers provide vigorous mixing to achieve interphase contact.
During operation, the light phase enters from the column bottom while the heavy phase is fed from the top, enabling countercurrent flow. Upon completing the extraction process, the light phase exits from the top outlet and the heavy phase discharges from the bottom.
This extraction column is suitable for all liquid-liquid extraction processes and can also facilitate staged chemical reactions, whether mass transfer is involved or not.
Specifications
|
Model
|
LX-TEC-20；LX-TEC-30；LX-TEC-40；LX-TEC-50；LX-TEC-60；LX-TEC-80；LX-TEC-100；LX-TEC-150；LX-TEC-200；LX-TEC-300
|
|
Column Outer Diameter (mm)
|
20；30；40；50；60；80；100；150；200；300
|
|
Number of Extraction Stages
|
Calculated based on material properties
|
|
Column Material
|
High Borosilicate Glass/PTFE/PP/SUS 316L/SUS 304
|
|
Structural Material of the Frame
|
Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
|
|
Types of Control Systems
|
Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
|
|
Notes
|
Optional insulation kit available
|
Why Choose Our Turbine Extraction Column?
- Customizable to your specific process requirements
- Enhanced productivity with high-efficiency separation
- Reduced operational costs through energy-efficient design
- Durable construction for long-term reliability
- Compliance with international quality and safety standards
- Expert technical support and after-sales service
Application Areas
Our Turbine Extraction Columns excel in various hydrometallurgical applications, including:
- Rare earth element extraction
- Precious metal recovery
- Base metal purification
- Waste water treatment
- Solvent recovery in chemical processes
- Separation and purification of active pharmaceutical ingredients
These versatile columns are crucial in optimizing mineral processing, ensuring high-purity metal extraction, and supporting sustainable resource management practices.
After-sales Service
At Xi'an Lexin Technology, we're committed to your success long after the purchase. Our comprehensive after-sales support includes:
- Warranty coverage for peace of mind
- Provide comprehensive operation training materials
- Regular maintenance checks and optimization advice
- Prompt technical support
- Spare parts availability
FAQ
Q: What makes products more efficient than other separation methods?
A: The products offer higher stage efficiency, lower solvent holdup, and greater capacity, making them ideal for continuous, large-scale separation processes.
Q: Can your products be customized for specific applications?
A: Absolutely! We tailor our columns to meet your exact specifications, considering factors like flow rates, material compatibility, and regulatory requirements.
Q: What is the typical lifespan of a product?
A: With proper maintenance, our columns can operate efficiently for 10-15 years or more, depending on the application and operating conditions.
Q: How do you ensure the quality and safety of your products?
A: We follow to strict quality control measures and worldwide guidelines, counting ISO certifications, to guarantee the most noteworthy level of quality and security in our items.
Q: What kind of support can I expect after purchasing a product?
A: We offer comprehensive after-sales support, including installation guidance, training, maintenance services, and prompt technical assistance to ensure optimal performance of your equipment.
