Packed Extraction Column
Model: LX-PEC-20；LX-PEC-30；LX-PEC-40；LX-PEC-50；LX-PEC-60；LX-PEC-80；LX-PEC-100；LX-PEC-150；LX-PEC-200； LX-PEC-300
Column outer diameter（mm）: 20；30；40； 50；60；80；100；150；200；300
Column Material: High Borosilicate Glass/PTFE/PP/SUS 316L/SUS 304
Types of Packing: Random Packing （Dixon rings, Tri-Packs, Raschig rings, Berl saddles, Pall rings, etc.）, Structured Packing （corrugated sheets, etc.）
Structural Material of the Frame：Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
Types of Control Systems：Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
Notes: Optional insulation kit available.
- Product Description
Packed Extraction Column: Advanced Separation Technology for Industrial Processes
Welcome to Xi'an Lexin Technology Co., Ltd., your trusted partner for high-performance Packed Extraction Columns. With over a decade of experience in hydrometallurgy, we're proud to offer cutting-edge separation solutions that meet the demanding needs of various industries. Our products are designed to deliver superior efficiency, durability, and cost-effectiveness for your continuous production processes.
Why Choose Xi'an Lexin's Packed Extraction Column?
At Xi'an Lexin Technology, we pride ourselves on:
- Customized solutions tailored to your specific process requirements
- Expert design backed by years of industry experience
- Compliance with international standards (ISO) for quality assurance
- Comprehensive support from initial consultation to after-sales service
- Innovative technology that maximizes separation efficiency and minimizes operational costs
Product Description

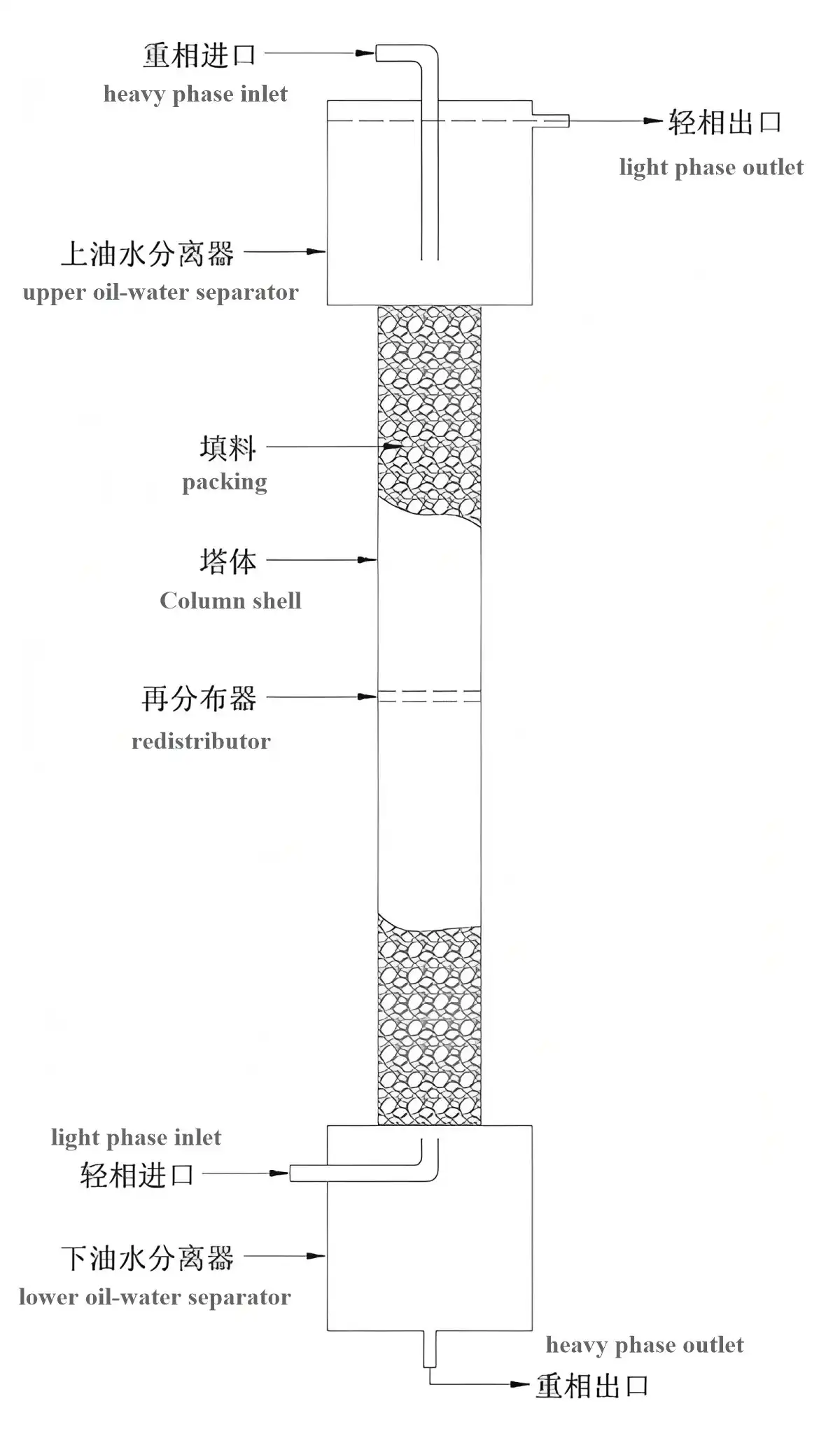

A packed extraction column is a liquid-liquid extraction device composed of a column body, packing, feed and discharge systems, upper and lower oil-water separators, a column mounting base, and an electrical control system. The inner diameter and height of the column, as well as the type of packing, are custom-designed and selected based on the client's process materials. Packing is a crucial component of the extraction column, as it increases the contact area between the light and heavy phases, thereby improving extraction efficiency. Commonly used packing includes ring-shaped packing, spherical packing, and mesh packing, among others.
During the extraction operation, the light phase (the feed liquid with lower density) is introduced from the bottom of the column, while the heavy phase (the feed liquid with higher density) is introduced from the top. The two phases flow countercurrently through the column, coming into contact and transferring mass along the surface of the packing to complete the extraction process. The packing layer not only facilitates the continuous coalescence and redispersion of droplets to promote surface renewal but also helps reduce axial backmixing.
Specifications
|
Model
|
LX-PEC-20；LX-PEC-30；LX-PEC-40；LX-PEC-50；LX-PEC-60；LX-PEC-80；LX-PEC-100；LX-PEC-150；LX-PEC-200；LX-PEC-300
|
|
Column Outer Diameter (mm)
|
20；30；40；50；60；80；100；150；200；300
|
|
Column Material
|
High Borosilicate Glass/PTFE/PP/SUS 316L/SUS 304
|
|
Types of Packing
|
Random Packing （Dixon rings, Tri-Packs, Raschig rings, Berl saddles, Pall rings, etc.）, Structured Packing （corrugated sheets, etc.）
|
|
Structural Material of the Frame
|
Carbon steel with anti-corrosion coating/ SUS 304/ SUS 316
|
|
Types of Control Systems
|
Explosion-proof Instrument Cabinet/ General-purpose Control Panel/ PLC Control/ DCS Control
|
Note: Optional insulation kit available for temperature-sensitive applications.
Why Choose Our Packed Extraction Column?
- Customizable design to fit your specific process needs
- High-quality materials ensure long-term reliability
- Advanced packing options for optimal mass transfer
- Flexible control systems for precise operation
- Comprehensive documentation and support for easy integration

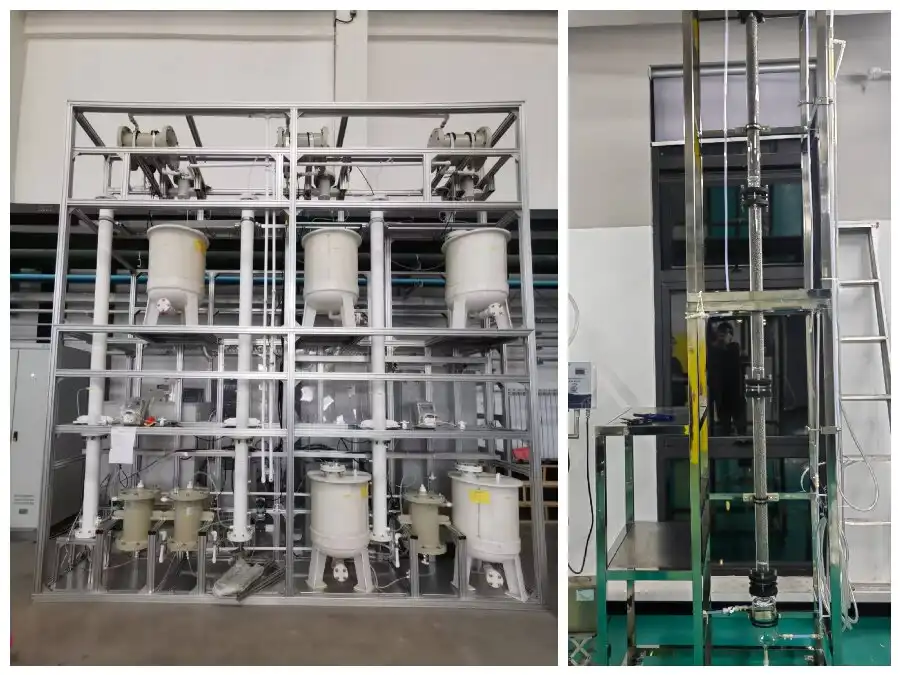

Product Display
Application Areas
Our product excel in hydrometallurgical applications, including:
- Rare earth element separation
- Precious metal recovery
- Base metal purification
- Wastewater treatment in mining operations
- Solvent extraction in battery material production
These versatile units are also widely used in chemical, pharmaceutical, and environmental industries for various separation processes.
After-sales Service
We're committed to your success beyond the purchase. Our comprehensive after-sales support includes:
- Warranty coverage for peace of mind
- Provide comprehensive operation training materials
- Regular maintenance checks and optimization advice
- Rapid response troubleshooting
- Spare parts availability and quick delivery
FAQ
Q: What makes your products unique?
A: Our columns combine customizable design, high-quality materials, and advanced packing options for optimal performance in diverse applications.
Q: Can these columns handle corrosive materials?
A: Yes, we offer various corrosion-resistant materials like PTFE and SUS 316L to suit your process needs.
Q: What's the typical lead time for a customized column?
A: Lead times vary based on specifications, but we generally deliver within 8-12 weeks from order confirmation.
Q: Do you provide documentation for regulatory compliance?
A: Absolutely. We provide comprehensive documentation to support your regulatory and quality assurance requirements.
Q: How do I determine the right column size for my process?
A: Our expert engineers will work with you to analyze your process requirements and recommend the optimal column size.
Contact Us
Ready to enhance your separation processes with our state-of-the-art Packed Extraction Columns? Reach out to our team of experts today for personalized solutions and support.
Email: xalexin-tech@outlook.com
Trust Xi'an Lexin Technology to deliver the advanced separation technology your business needs for success in today's competitive industrial landscape.
